Compositional data difference test

suppressPackageStartupMessages({
library(Seurat)
library(SeuratData)
library(tidyverse)
library(pheatmap)
library(RColorBrewer)
library(ggbeeswarm)
library(cowplot)
library(ggcompare)
library(compositions)
library(DirichletReg)
})
theme_set(theme_cowplot())
options(repr.plot.width=15, repr.plot.height=9, width=120)

Compositional data difference test#

data#

panc8 <- suppressMessages(LoadData("panc8"))
panc8

Warning message:
"Assay RNA changing from Assay to Assay"
Warning message:
"Assay RNA changing from Assay to Assay5"

An object of class Seurat
34363 features across 14890 samples within 1 assay
Active assay: RNA (34363 features, 0 variable features)
 2 layers present: counts, data

panc8@meta.data |>
head()

A data.frame: 6 × 8
	orig.ident	nCount_RNA	nFeature_RNA	tech	replicate	assigned_cluster	celltype	dataset
	<chr>	<dbl>	<int>	<chr>	<chr>	<chr>	<chr>	<chr>
D101_5	D101	4615.810	1986	celseq	celseq	NA	gamma	celseq
D101_7	D101	29001.563	4209	celseq	celseq	NA	acinar	celseq
D101_10	D101	6707.857	2408	celseq	celseq	NA	alpha	celseq
D101_13	D101	8797.224	2964	celseq	celseq	NA	delta	celseq
D101_14	D101	5032.558	2264	celseq	celseq	NA	beta	celseq
D101_17	D101	13474.866	3982	celseq	celseq	NA	ductal	celseq

metadata <-
    panc8@meta.data |>
    distinct(orig.ident, tech) |>
    as_tibble()
head(metadata)

A tibble: 6 × 2
orig.ident	tech
<chr>	<chr>
D101	celseq
D102	celseq
D10631	celseq
D1713	celseq
D172444	celseq
D17All1	celseq

Counts#

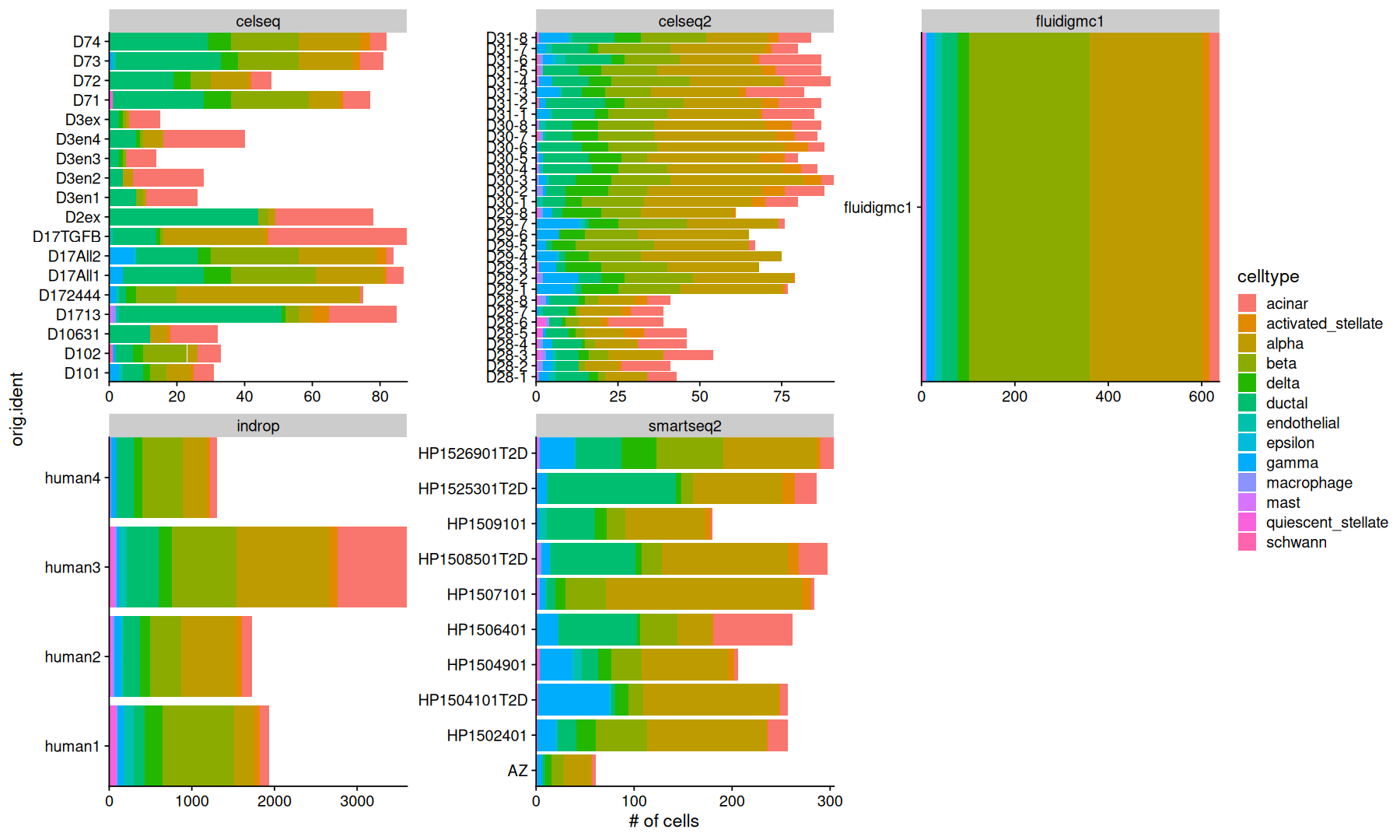

This is a pancreatic single cell dataset consisting of 65 samples, 13 different cell types, measured with 5 different techniques.

Here, we will ignore the gene expression, and just look at the cell composition of each sample/tech.

panc8@meta.data |>
count(orig.ident, celltype, tech) |>
ggplot(aes(y=orig.ident, x=n, fill=celltype)) +
geom_col() +
labs(x='# of cells') +
facet_wrap(~tech, scales='free') +
coord_cartesian(expand=0)

../../_images/32a9496e4912ccf93a296b3442d0ba7451a845195a01b79aced9cd95079bdb3c.png

Counts are the simplest way to look at the data.

However, differences in the total number of cells between samples and techniques aren’t relevant to us.

ncells_mtx <-
    panc8@meta.data |>
    # I am combining celltypes with low amount of cells into "other"
    # this is just for illustration purposes
    mutate(ct2 = ifelse(celltype %in% c('epsilon','schwann','mast','macrophage','quiescent_stellate','endothelial'), 'other', celltype)) |>
    count(orig.ident, ct2) |>
    pivot_wider(names_from = ct2, values_from = n, values_fill = 0) |>
    column_to_rownames('orig.ident')

ncells_mtx[1:5,]; sum(ncells_mtx)

A data.frame: 5 × 8
	acinar	activated_stellate	alpha	beta	delta	ductal	gamma	other
	<int>	<int>	<int>	<int>	<int>	<int>	<int>	<int>
AZ	4	1	28	12	7	3	5	1
D101	6	1	7	5	2	6	3	1
D102	7	0	3	13	3	5	1	1
D10631	14	1	5	0	0	12	0	0
D1713	20	5	4	4	1	48	0	3

14890

colSums(ncells_mtx)

acinar: 1864
activated_stellate: 474
alpha: 4615
beta: 3679
delta: 1013
ductal: 1954
gamma: 625
other: 666

Percentages#

Percentages uses the sum of the cells in each sample as the normalizing denominator, so that each row will sum to 1.

The “acomp” function is part of the compositions package, and does this normalization for us.

summary(rowSums(acomp(ncells_mtx)))

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
      1       1       1       1       1       1

color_p = colorRampPalette(rev(brewer.pal('Spectral', n=11)))(100)
acomp(ncells_mtx) |>
pheatmap(
    color=color_p,
    clustering_method='ward.D2',
    clustering_disttance_rows='canberra',
    clustering_disttance_cols='canberra',
    annotation_row=column_to_rownames(metadata, 'orig.ident'),
    border_color=NA
)

../../_images/35d0c5a373aa7b74ac0e7ea6fd4397c077ef038b4a81ec6e0e014a1525f721bc.png

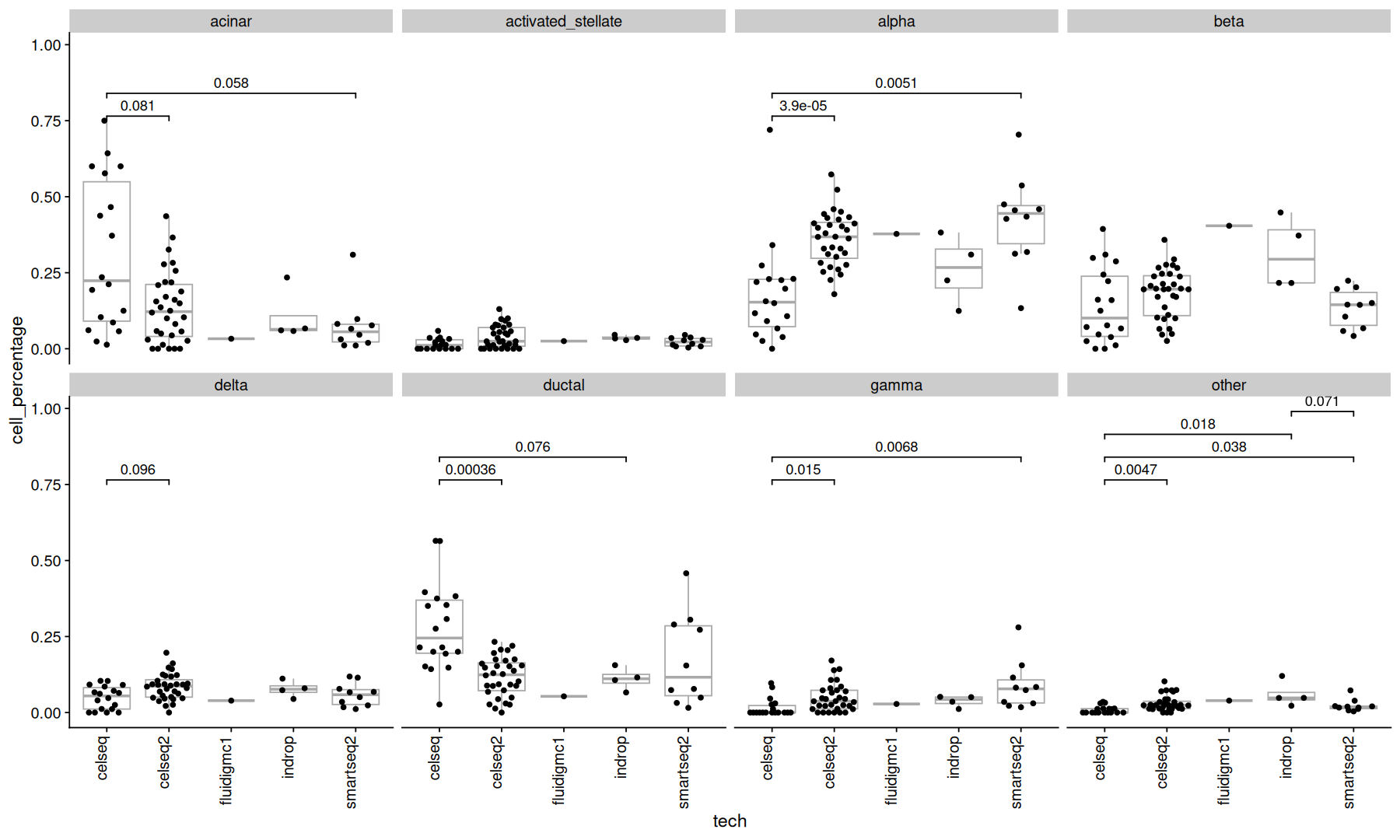

Difference test#

To compare the proportions between cell types, we can use a statistical test.

comparisons <- combn(unique(metadata$tech), 2, simplify = FALSE)

test_func <- function(...) {
    r = wilcox.test(..., exact=FALSE)
    list(p.value=r$p.value, method='wilcox.test')
}

acomp(ncells_mtx) |>
as.data.frame() |>
rownames_to_column('orig.ident') |>
pivot_longer(names_to = 'celltype', values_to = 'cell_percentage', cols=-orig.ident) |>
inner_join(metadata, by='orig.ident') |>
ggplot(aes(x=tech, y=cell_percentage)) +
geom_boxplot(color='darkgray', outlier.shape = NA) +
geom_quasirandom() +
stat_compare(comparisons = comparisons, correction = 'fdr', cutoff=0.1, panel_indep = TRUE, method=test_func) +
theme(axis.text.x=element_text(angle=90, vjust=0, hjust=1)) +
facet_wrap(~celltype, ncol=4)

Warning message:
"Removed 67 rows containing missing values or values outside the scale range (`geom_bracket()`)."

../../_images/d3142080ab0db0509e4a34d359f4e68aee67a481092279a8e7959590155faa6d.png

Many cell types show significant pvalues, but since the cell types are parts of a whole, its difficult to attribute this change to a specific cell type.

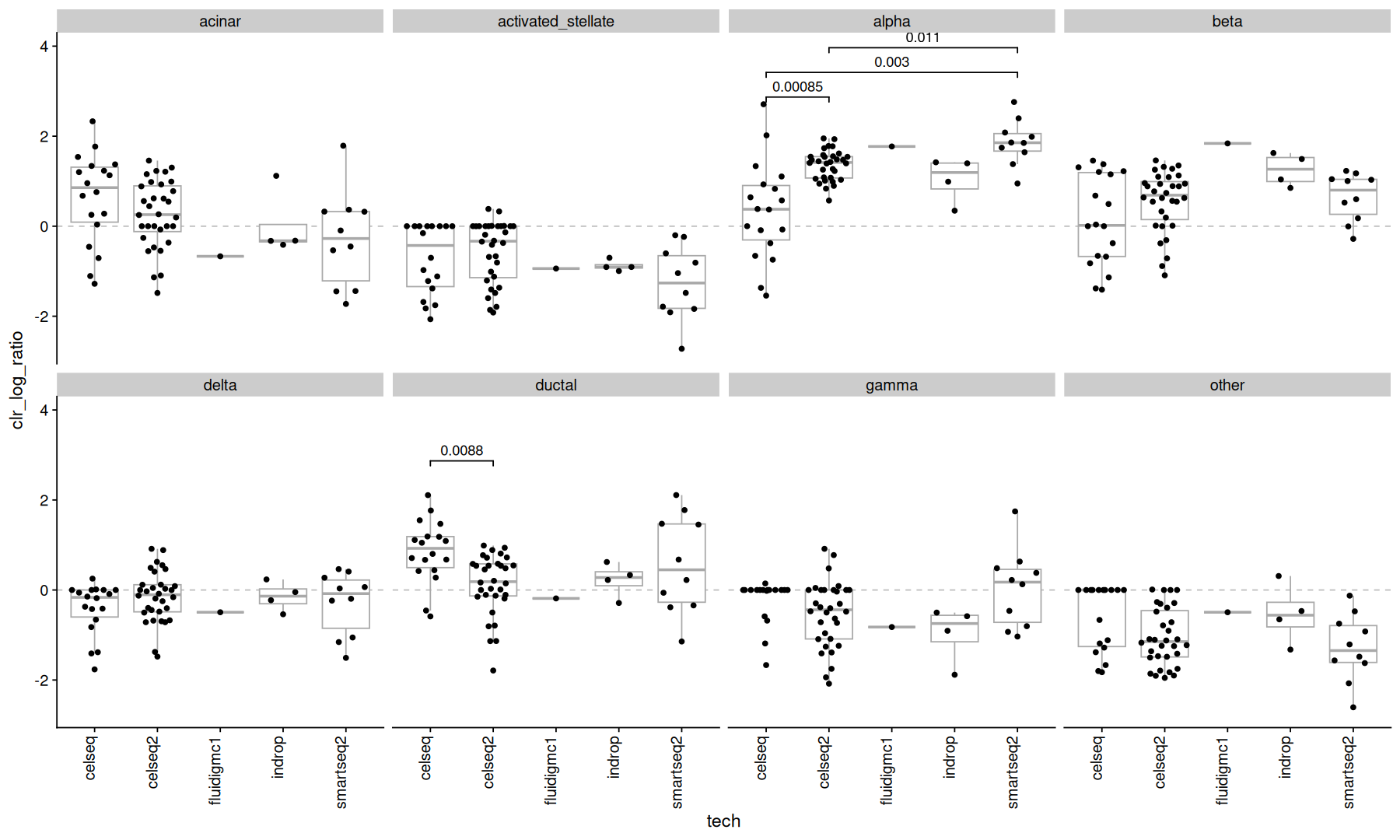

clr transform#

The clr transform uses the geometric mean of the subsets as the denominator.

the clr() function is also part of the compositions package.

acomp(ncells_mtx) |>
clr() |>
as.data.frame() |>
rownames_to_column('orig.ident') |>
pivot_longer(names_to = 'celltype', values_to = 'clr_log_ratio', cols=-orig.ident) |>
inner_join(metadata, by='orig.ident') |>
ggplot(aes(x=tech, y=clr_log_ratio)) +
geom_hline(yintercept=0, color='gray', linetype=2) +
geom_boxplot(color='darkgray', outlier.shape = NA) +
geom_quasirandom() +
stat_compare(comparisons = comparisons, correction = 'fdr', cutoff=0.1, panel_indep=TRUE, method=test_func) +
theme(axis.text.x=element_text(angle=90, vjust=0, hjust=1)) +
facet_wrap(~celltype, ncol=4)

Warning message:
"Removed 76 rows containing missing values or values outside the scale range (`geom_bracket()`)."

../../_images/95a6ec6b8a369feb3478763cf72fc821e961881911f63e115b805086c067cfa4.png

notice how many of the significant pvalues disappeared.

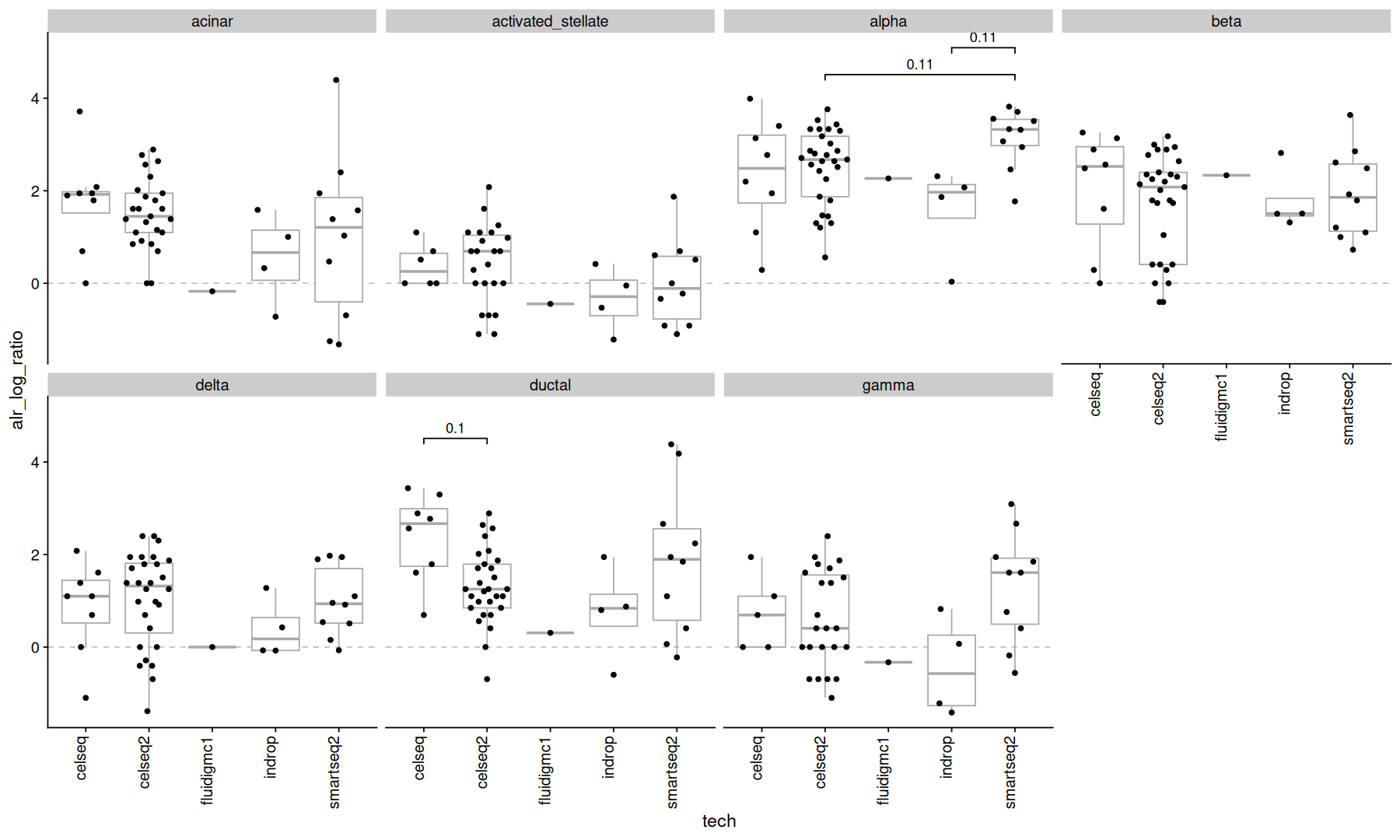

alr transform#

The alr transform uses a specified subset as the denominator, here the cell type “other” was used.

acomp(ncells_mtx) |>
alr(ivar='other') |> # using celltype 'other' as the denominator
as.data.frame() |>
rownames_to_column('orig.ident') |>
pivot_longer(names_to = 'celltype', values_to = 'alr_log_ratio', cols=-orig.ident) |>
inner_join(metadata, by='orig.ident') |>
ggplot(aes(x=tech, y=alr_log_ratio)) +
geom_hline(yintercept=0, color='gray', linetype=2) +
geom_boxplot(color='darkgray', outlier.shape = NA) +
geom_quasirandom() +
stat_compare(comparisons = comparisons, correction = 'fdr', cutoff=0.2, panel_indep = TRUE, method=test_func) +
theme(axis.text.x=element_text(angle=90, vjust=0, hjust=1)) +
facet_wrap(~celltype, ncol=4)

Warning message:
"Removed 113 rows containing non-finite outside the scale range (`stat_boxplot()`)."
Warning message:
"Removed 113 rows containing non-finite outside the scale range (`stat_compare()`)."
Warning message:
"Removed 26 rows containing missing values or values outside the scale range (`position_quasirandom()`)."
Warning message:
"Removed 87 rows containing missing values or values outside the scale range (`geom_point()`)."
Warning message:
"Removed 67 rows containing missing values or values outside the scale range (`geom_bracket()`)."

../../_images/08a2ff39f4bf20450837d539b90a1291e0d3d42ebf510ff5fa6bf8a01ebbbaf5.png

No cell types show significant (<0.1) pvalues here.

but remember to think carefully about which subset to use as the denominator.

Dirichlet regression#

The Dirichlet distribution models the probability of a multinomial random variable that sums to 1.

It provides an alternative to log-ratio regression for the modeling of compositional data.

meta <- filter(metadata, tech != 'fluidigmc1') # remove outlier

z <- ncells_mtx[meta$orig.ident,]
z <- z/rowSums(z)

all(rownames(z) == meta$orig.ident) # make sure its in the same order

TRUE

dr <- DR_data(z)
summary(rowSums(dr))

Warning message in DR_data(z):
"some entries are 0 or 1 => transformation forced"

   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
      1       1       1       1       1       1

Note that the Dirichlet distribution can’t model zeroes or ones, so a transformation was applied in these cases.

reg <- DirichReg(dr ~ tech - 1, meta)
reg

Call:
DirichReg(formula = dr ~ tech - 1, data = meta)
using the common parametrization

Log-likelihood: 771.9 on 32 df (105 BFGS + 1 NR Iterations)

-----------------------------------------
Coefficients for variable no. 1: acinar
   techcelseq    techcelseq2     techindrop  techsmartseq2
       0.6371         0.3604         1.4701         0.2580
-----------------------------------------
Coefficients for variable no. 2: activated_stellate
   techcelseq    techcelseq2     techindrop  techsmartseq2
      -0.9922        -0.3468         0.7442        -0.2810
-----------------------------------------
Coefficients for variable no. 3: alpha
   techcelseq    techcelseq2     techindrop  techsmartseq2
       0.2472         1.7536         2.4029         1.9901
-----------------------------------------
Coefficients for variable no. 4: beta
   techcelseq    techcelseq2     techindrop  techsmartseq2
     -0.04158        1.05837        2.60706        0.92925
-----------------------------------------
Coefficients for variable no. 5: delta
   techcelseq    techcelseq2     techindrop  techsmartseq2
      -0.5621         0.4265         1.3318         0.2516
-----------------------------------------
Coefficients for variable no. 6: ductal
   techcelseq    techcelseq2     techindrop  techsmartseq2
       0.8086         0.6040         1.6510         0.8798
-----------------------------------------
Coefficients for variable no. 7: gamma
   techcelseq    techcelseq2     techindrop  techsmartseq2
      -1.1218        -0.1968         0.6864         0.4714
-----------------------------------------
Coefficients for variable no. 8: other
   techcelseq    techcelseq2     techindrop  techsmartseq2
      -1.1189        -0.2716         1.0149        -0.2910
-----------------------------------------

tidy_dr <- function(dr_reg, exp=FALSE) {
    w = confint(dr_reg, exp=exp)
    map_df(1:length(w$coefficients), function(i) {
        if(exp) {
            cc <- base::exp(w$coefficients[[i]])
        } else {
            cc <- w$coefficients[[i]]
        }
        as.data.frame(w$ci[[1]][[i]]) |>
        rownames_to_column('term') |>
        rename(ci.low=V1, ci.high=V2) |>
        mutate(
            subset=names(w$coefficients)[[i]]
        ) |>
        inner_join(as_tibble(cc,rownames = 'term'), by='term')
    })
}

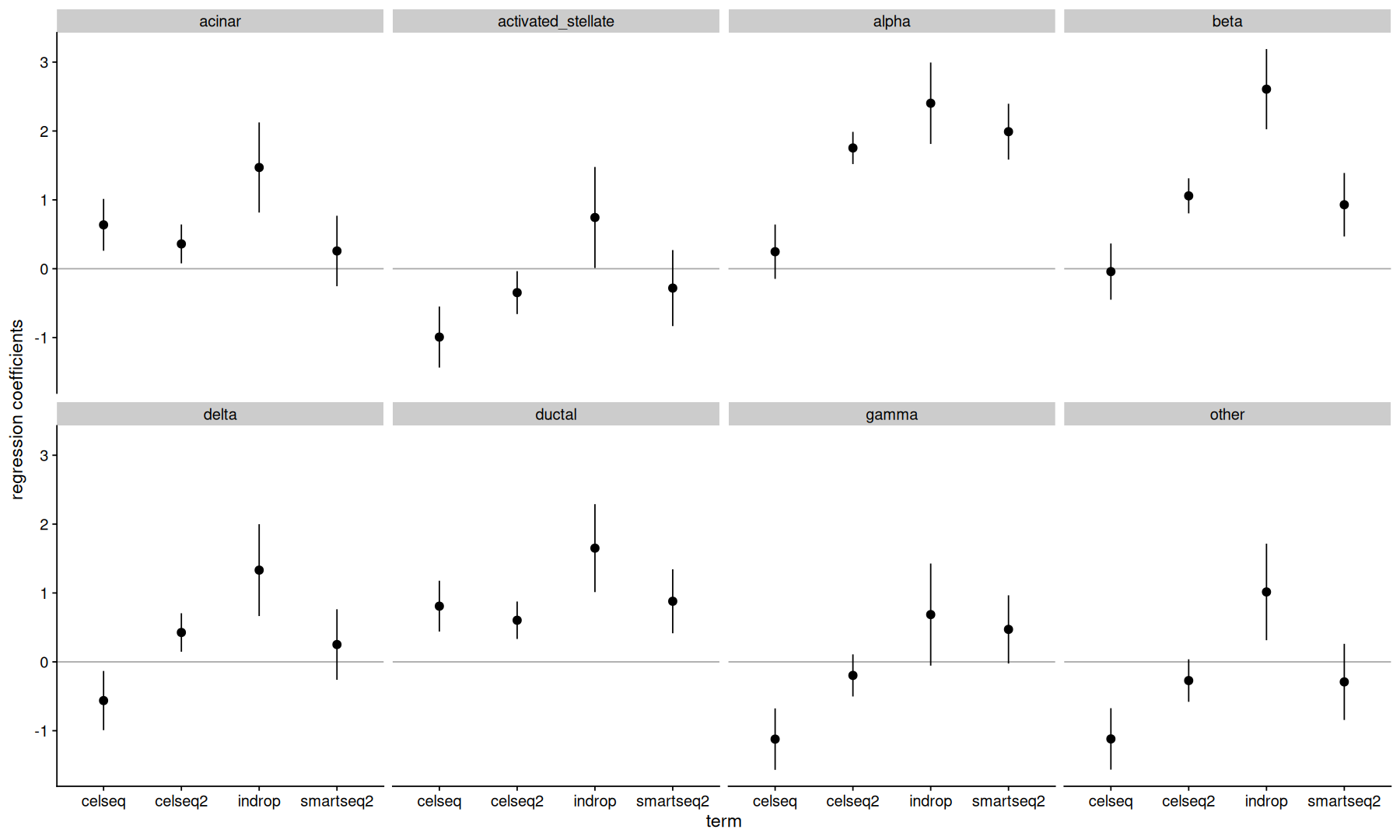

tidy_dr(reg, exp=FALSE) |>
mutate(term=gsub('tech','', term)) |>
ggplot(aes(x=term, y=value)) +
geom_hline(yintercept=0, color='darkgray') +
geom_point() +
geom_pointrange(aes(ymin=ci.low, ymax=ci.high)) +
facet_wrap(~subset, ncol=4) +
labs(y='regression coefficients')

../../_images/3d32527acbd6a0689cb10c2182305a4d0a156a5a8379a179dc9966059c09638d.png
