suppressPackageStartupMessages({
library(tidyverse)
library(cowplot)
library(ggrepel)
library(pheatmap)
library(viridis)
library(matrixStats)
})
theme_set(theme_cowplot())
options(repr.plot.width=15,repr.plot.height=9)

Mahjong Yaku stats

Analysis of yaku stats using Tenhou winning hands data, downloaded in may 2023

the data

read_tsv("data/data.tsv.gz", col_types="") %>%
select(-hanp, -chanp, -rate) %>%
complete(yaku, nesting(month, year, room, mode, total)) %>%
mutate(count=ifelse(is.na(count), 0, count)) %>%
mutate(date=as.Date(paste0(year,'-',month,'-01'))) %>%
inner_join(read_tsv("data/rooms.tsv", col_types=""), by="room") %>%
inner_join(read_tsv("data/yakus.tsv", col_types=""), by='yaku') %>%
inner_join(read_tsv("data/modes.tsv", col_types=""), by='mode') %>%
mutate(yaku_romaji=str_to_title(yaku_romaji)) %>%
mutate(
    han_value_closed=case_when(
        grepl("yakuman", han_value_closed) ~ str_to_title(han_value_closed),
        TRUE ~ paste(han_value_closed, "Han")
    )
) %>%
mutate(
    han_value_closed=ordered(han_value_closed, levels=c("1 Han", "2 Han", "3 Han", "6 Han", "Yakuman", "Double Yakuman"))
) -> a
head(a)

A tibble: 6 × 16

yaku	month	year	room	mode	total	count	avg_yaku_han	avg_hand_han	date	room_romaji	yaku_romaji	han_value_closed	mode_romaji	n_players	n_rounds
<chr>	<dbl>	<dbl>	<chr>	<chr>	<dbl>	<dbl>	<dbl>	<dbl>	<date>	<chr>	<chr>	<ord>	<chr>	<dbl>	<dbl>
ドラ	1	2007	一般	三南喰赤	39157	30121	2.15	5.66	2007-01-01	ippan	Dora	1 Han	sanma hanchan kui-aka	3	6
ドラ	1	2007	一般	三東喰赤	11204	8563	2.15	5.67	2007-01-01	ippan	Dora	1 Han	sanma tonpu kui-aka	3	3
ドラ	1	2007	一般	南	21206	8127	1.56	3.93	2007-01-01	ippan	Dora	1 Han	hanchan	4	8
ドラ	1	2007	一般	南喰	14760	5760	1.56	3.77	2007-01-01	ippan	Dora	1 Han	hanchan kui	4	8
ドラ	1	2007	一般	南喰赤	43756	16592	1.58	4.39	2007-01-01	ippan	Dora	1 Han	hanchan kui-aka	4	8
ドラ	1	2007	一般	東	46241	17642	1.57	3.93	2007-01-01	ippan	Dora	1 Han	tonpu	4	4

select(a, year, month, room, mode, total) %>% unique() %>% with(sum(total))

1416125478

• the data contains frequency of yakus in all winning hands played on tenhou since 2007

• the data is aggregated by month, room rank and game type, totalling 1.4 billion winning hands

select(a, date, room, mode, total, n_players, n_rounds) %>% unique() %>%
group_by(date) %>%
summarize(total=sum(total)) -> z1
filter(z1, date %in% c("2009-07-01","2016-11-01","2020-05-01")) -> z1sel

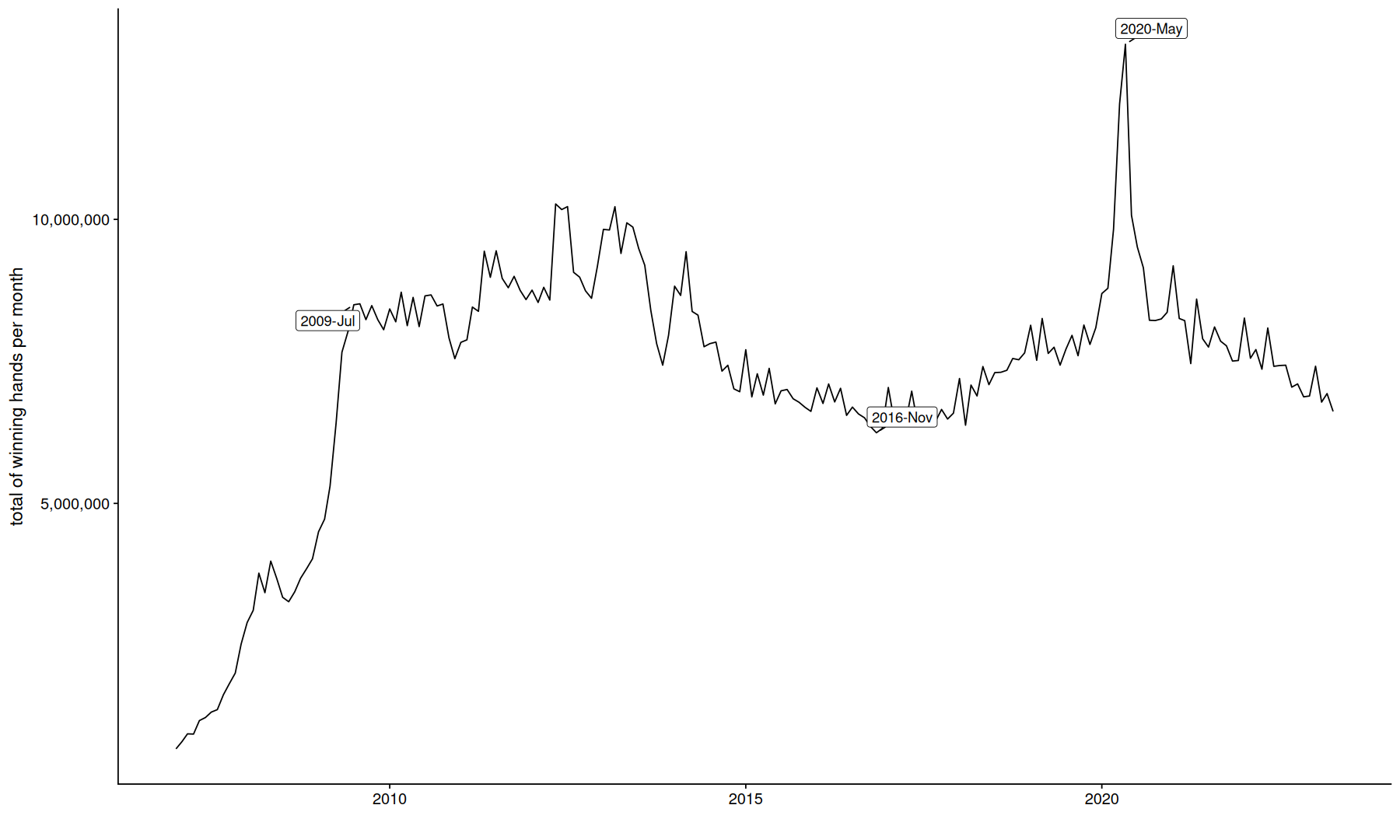

ggplot(z1,aes(x=date, y=total)) +
geom_line() +
scale_y_continuous(labels=scales::comma_format()) +
labs(y="total of winning hands per month", x="") +
geom_label_repel(data=z1sel, aes(label=format(date,"%Y-%b")), max.overlaps = Inf, min.segment.length = 0, segment.linetype=2)

• may-2020 had the highest number of winning hands, and is probably because a state of emergency was declared in Japan at the time due to covid-19

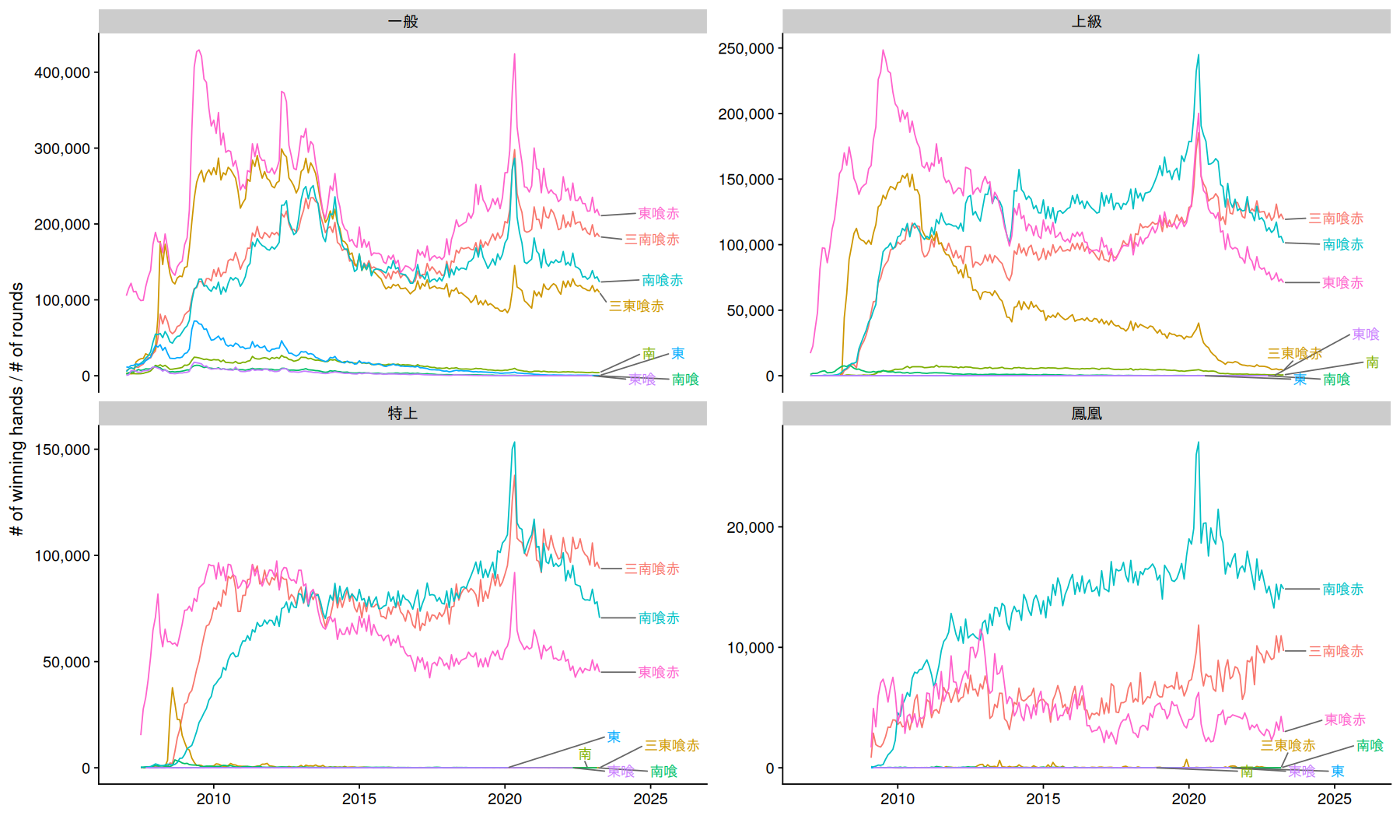

game modes popularity over time

select(a, date, room, mode, total, n_players, n_rounds) %>%
mutate(total_p=total/n_rounds) %>%
unique -> z1
group_by(z1, mode, room) %>% slice_max(date) -> z1max
ggplot(z1, aes(x=date, y=total_p, color=mode)) +
geom_line() +
scale_y_continuous(labels=scales::comma_format()) +
geom_text_repel(data=z1max,aes(label=mode), segment.color='gray40', hjust='right', nudge_x=1000, max.iter = 1e4, min.segment.length = 0, box.padding = 0.4) +
facet_wrap(~room, scales="free_y") +
labs(y="# of winning hands / # of rounds",x="") + guides(color='none')

• modes without kuitan or akadora are the least popular option

• sanma east games are popular on ippan but on a decline in joukyuu, and inexistent in later rooms

• sanma south seems to be getting more popular in houou rooms

yaku frequencies vs. han value

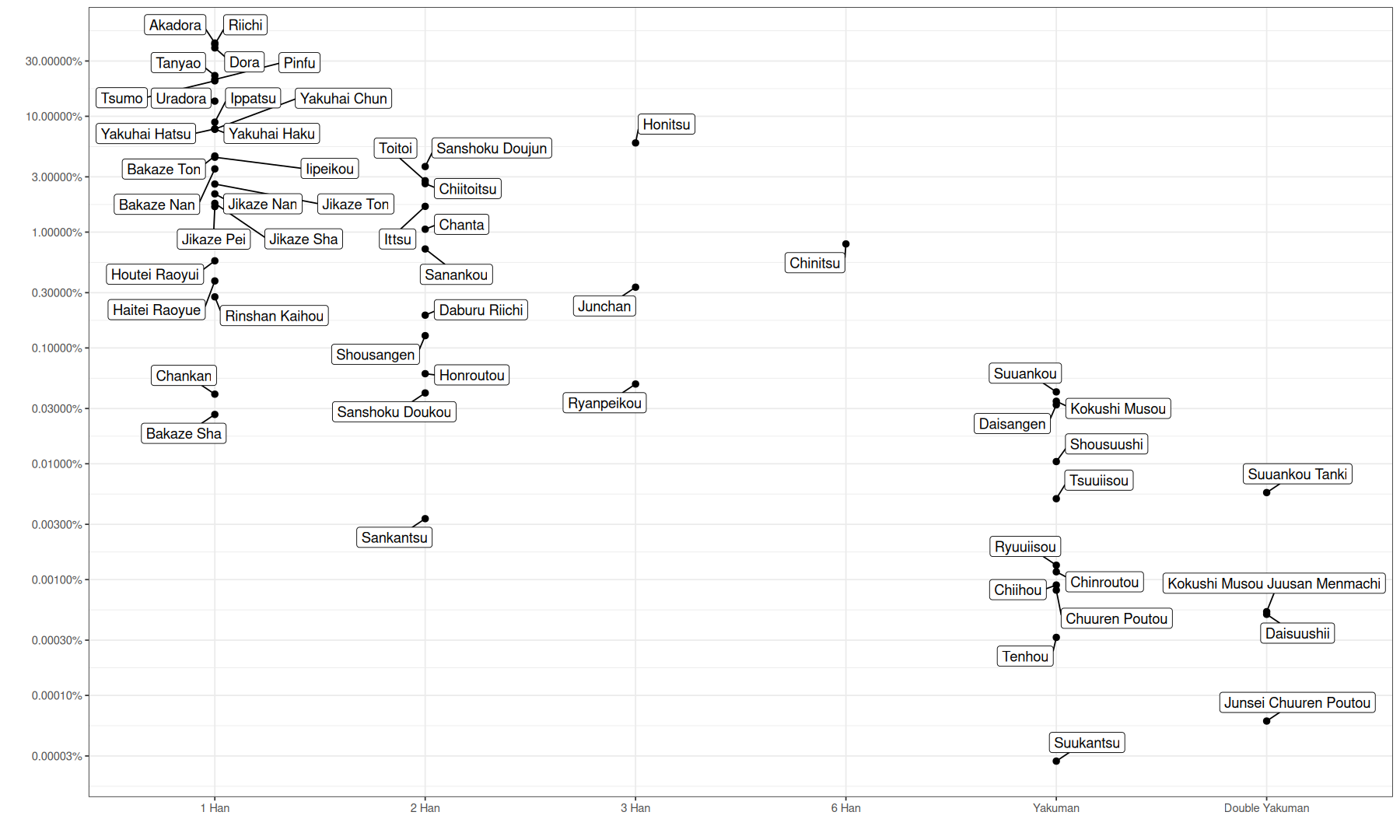

filter(a, mode=='南喰赤', yaku_romaji!='Bakaze Pei') %>%
group_by(yaku_romaji, han_value_closed) %>%
summarize(count=sum(count), total=sum(total)) %>%
mutate(p=count/total) %>% arrange(-p) %>%
ggplot(aes(x=han_value_closed, y=p)) +
geom_point(size=2) +
geom_label_repel(aes(label=yaku_romaji), min.segment.length = 0, max.iter = 1e4, max.overlaps = Inf, box.padding = 0.4) +
scale_y_log10(labels=scales::percent_format(), n.breaks=10) +
theme_bw() +
labs(y="", x="")

`summarise()` has grouped output by 'yaku_romaji'. You can override using the `.groups` argument.

• the Y-axis is in log scale, the difference between one tick and the next is 3x

• sankantsu is rarer than some yakumans, suukantsu is the rarest yaku at about 1 in 3 millon winning hands

• the frequency of the yaku doesn’t quite match its value, an explanation for this could be that players will tend to favor easier and/or more valuable yakus

yaku frequencies over time

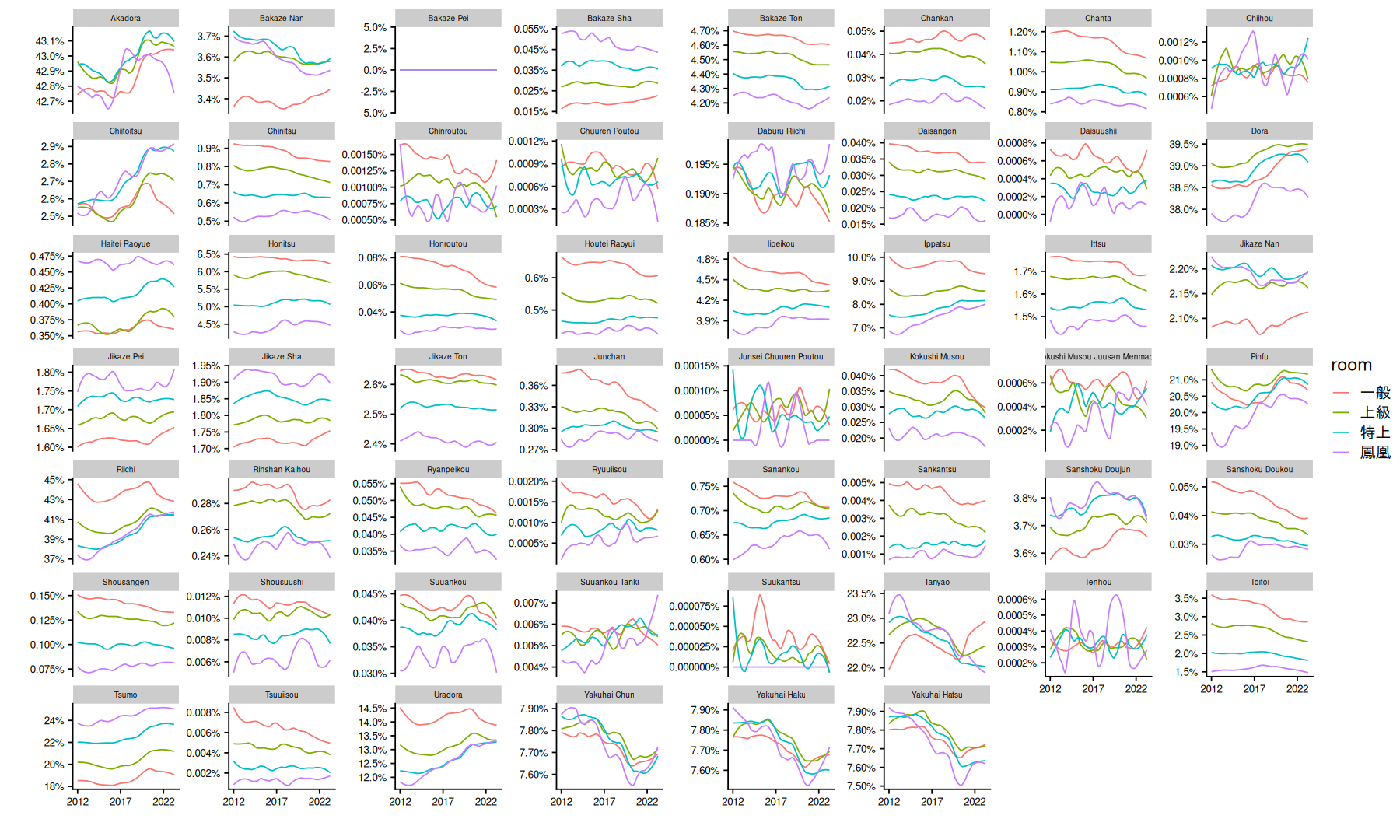

filter(a, mode=='南喰赤', year>2011) %>%
mutate(rm=paste(room,mode)) %>%
ggplot(aes(x=date, y=count/total, color=room)) +
scale_y_continuous(labels=scales::percent_format()) +
geom_smooth(se=FALSE, linewidth=0.5, span=0.3) +
labs(y="",x="") +
scale_x_date(date_labels = "%Y", breaks=as.Date(c("2012-01-01","2017-01-01","2022-01-01"))) +
facet_wrap(~yaku_romaji, scales="free_y") +
theme(
    strip.text = element_text(size = 6),
    axis.text.y=element_text(size=8),
    axis.text.x=element_text(size=8))

`geom_smooth()` using method = 'loess' and formula = 'y ~ x'

• remember this is % of winning hands, the yaku chance is not changing, what changes is the way people play

• bakaze pei is weird, its super rare yes, but after 2010 it was never recorded, probably a change in the algorithm avoids a north round extension

• I removed the early years because to low amount of data makes it hard to observe the low frequencies of the rarer yakus

average han value per yaku

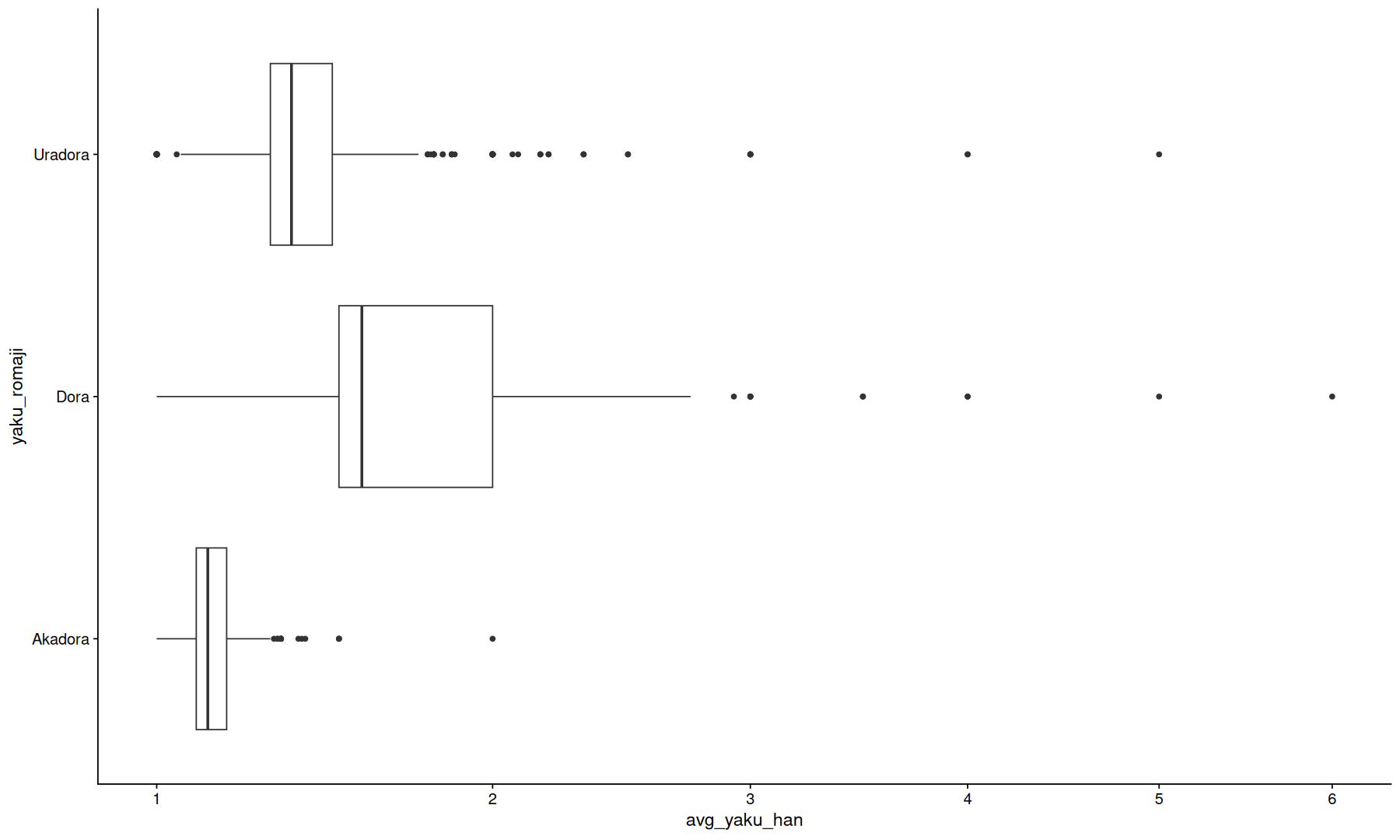

doras can appear more than once on the hand, so we can look at the average amount of value contributed to the hand

select(a, yaku_romaji, avg_yaku_han, avg_hand_han, han_value_closed) %>% unique %>%
filter(yaku_romaji %in% c("Dora", "Akadora", "Uradora")) %>%
ggplot(aes(x=avg_yaku_han, y=yaku_romaji)) + geom_boxplot() + scale_x_sqrt()

Warning message:
"Removed 3 rows containing non-finite values (`stat_boxplot()`)."

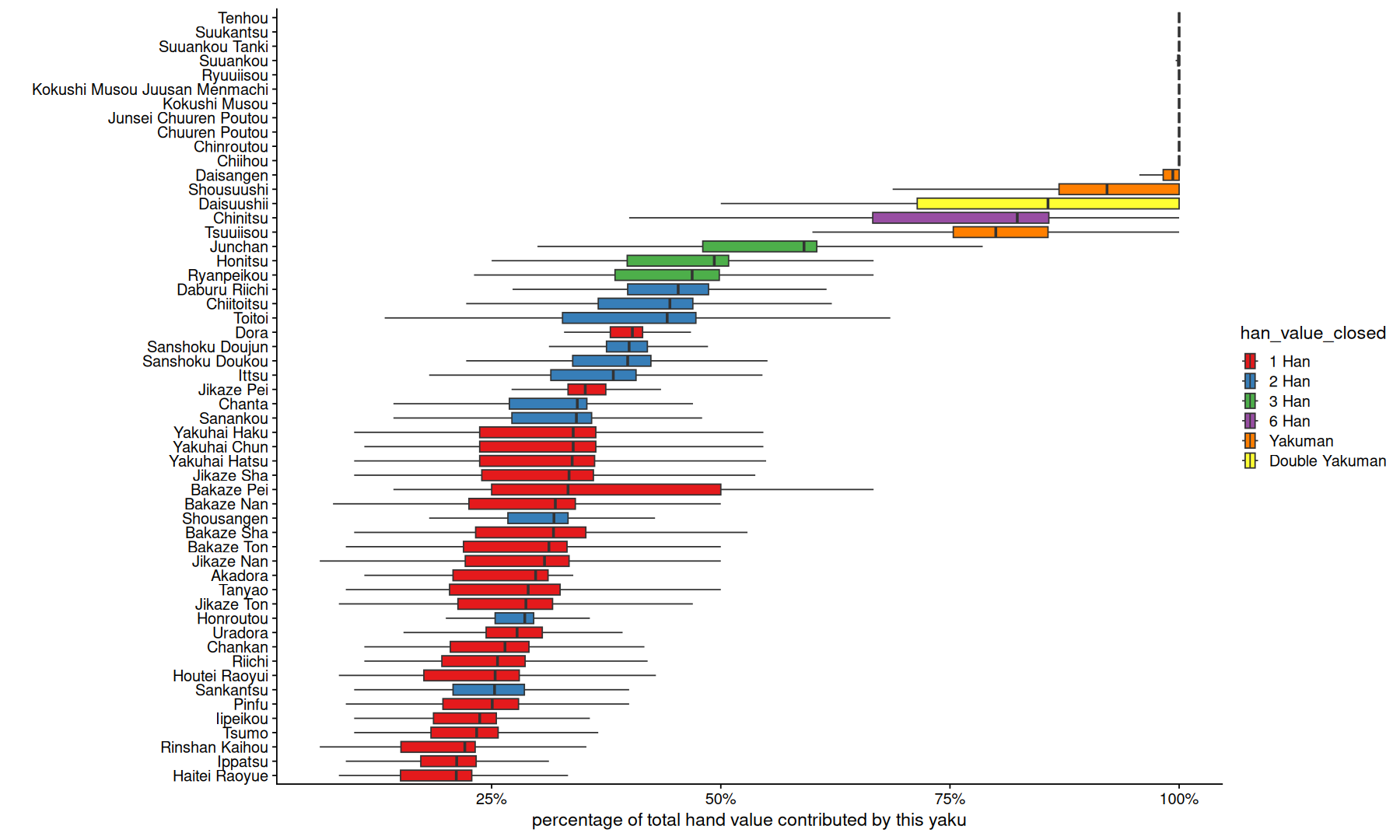

select(a, yaku_romaji, avg_yaku_han, avg_hand_han, han_value_closed, date, room, mode) %>% unique %>%
mutate(perc_han=avg_yaku_han/avg_hand_han) %>%
ggplot(aes(x=perc_han, y=fct_reorder(yaku_romaji, perc_han, .na_rm=TRUE), fill=han_value_closed)) +
geom_boxplot(outlier.shape = NA) +
scale_fill_brewer(palette='Set1') +
scale_x_continuous(labels=scales::percent_format()) +
labs(y="", x="percentage of total hand value contributed by this yaku")

Warning message:
"Removed 70864 rows containing non-finite values (`stat_boxplot()`)."

looking at specific yakus

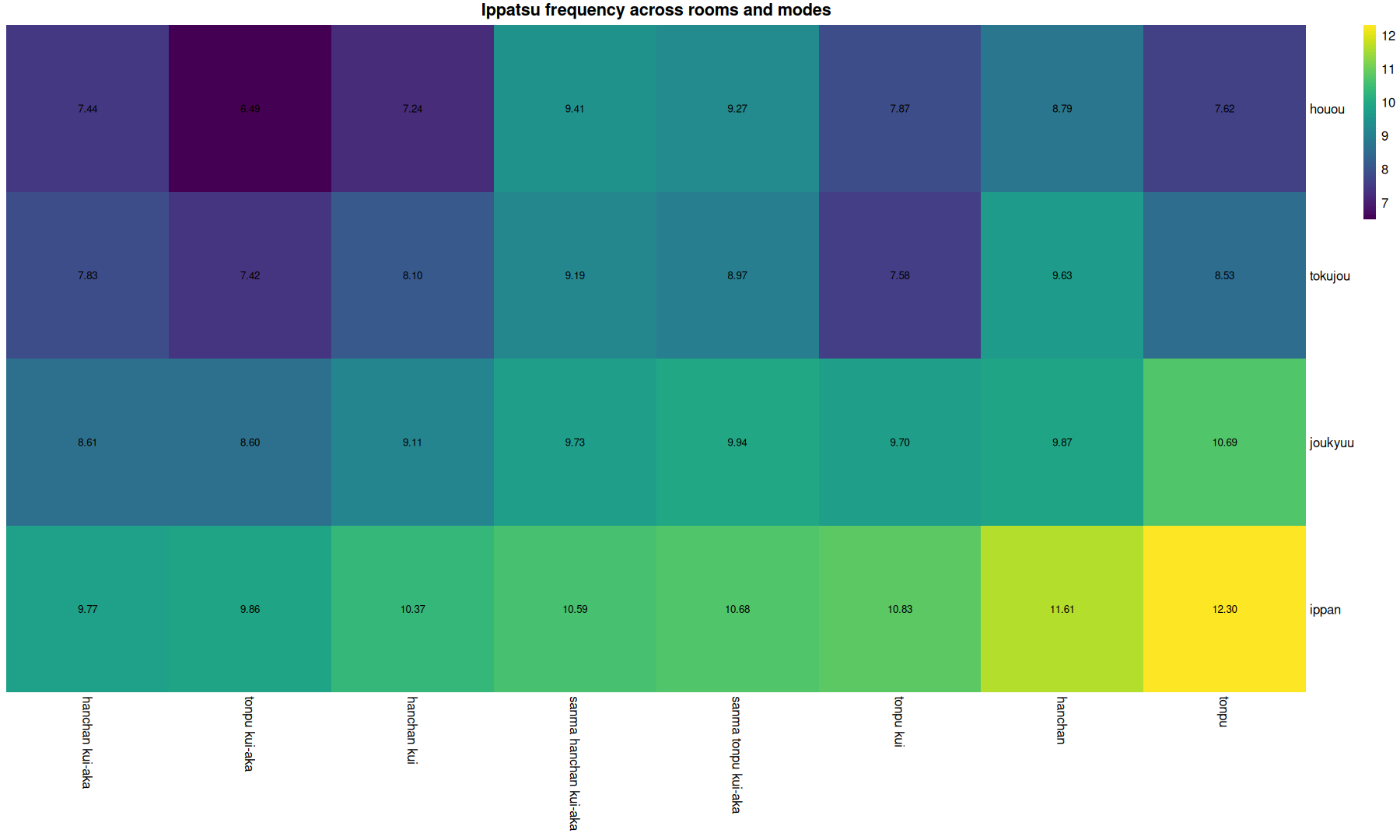

filter(a, yaku_romaji=='Ippatsu') %>%
group_by(room_romaji, mode_romaji) %>%
summarize(total=sum(total), count=sum(count)) %>%
mutate(p=100*count/total, total=NULL, count=NULL) %>%
mutate(room_romaji=ordered(room_romaji, levels=c("ippan", "joukyuu", "tokujou", "houou"))) %>%
pivot_wider(names_from = 'mode_romaji', values_from = 'p') %>%
arrange(room_romaji) %>%
column_to_rownames('room_romaji') %>%
as.matrix() %>%
.[order(rowMaxs(.)),order(colMaxs(.))] %>%
pheatmap(display_numbers = TRUE,main='Ippatsu frequency across rooms and modes', color=viridis(100), number_color = 'black', cluster_rows=F, cluster_cols=F, border_color = NA)

`summarise()` has grouped output by 'room_romaji'. You can override using the `.groups` argument.

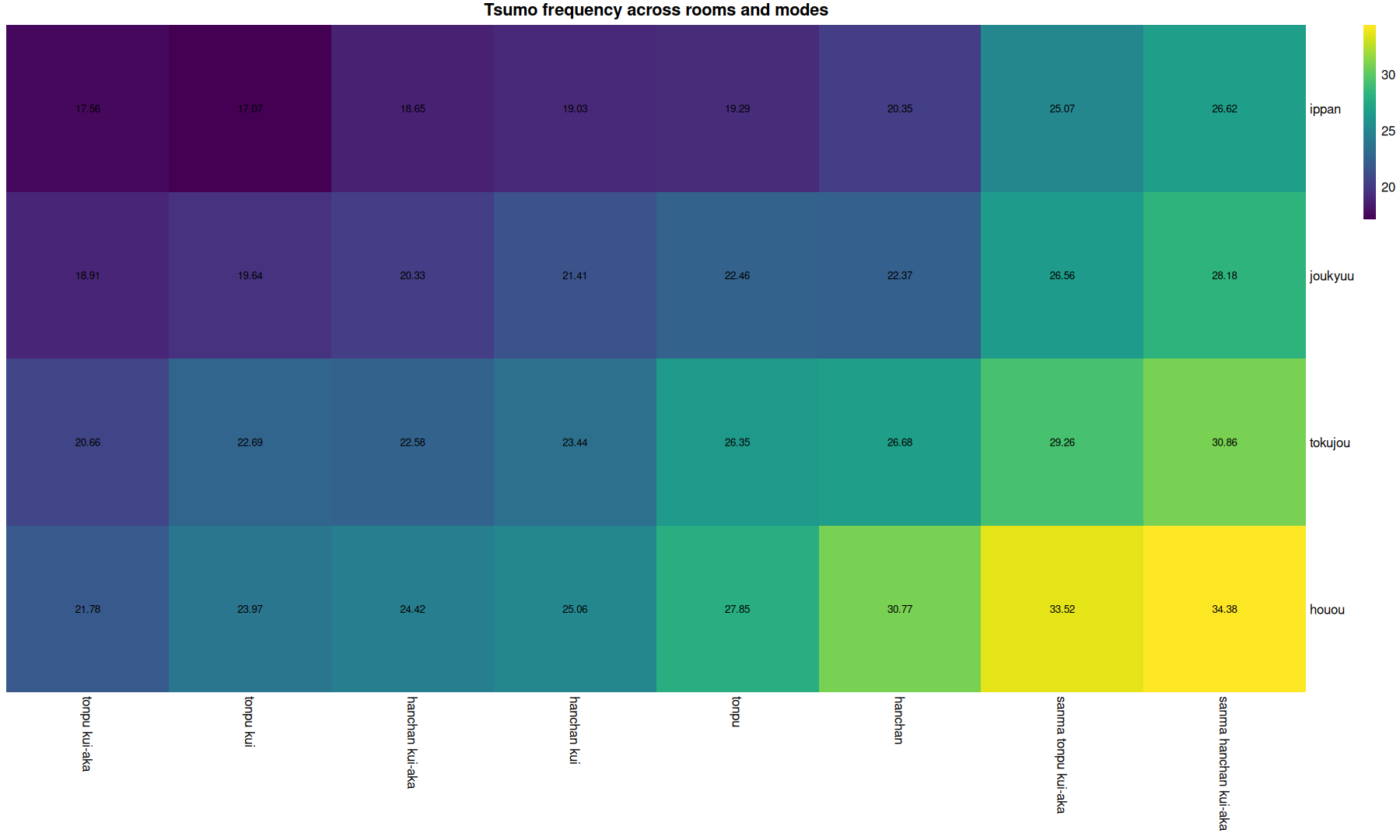

filter(a, yaku_romaji=='Tsumo') %>%
group_by(room_romaji, mode_romaji) %>%
summarize(total=sum(total), count=sum(count)) %>%
mutate(p=100*count/total, total=NULL, count=NULL) %>%
pivot_wider(names_from = 'mode_romaji', values_from = 'p') %>%
column_to_rownames('room_romaji') %>%
as.matrix() %>%
.[order(rowMaxs(.)),order(colMaxs(.))] %>%
pheatmap(display_numbers = TRUE,main='Tsumo frequency across rooms and modes', color=viridis(100), number_color = 'black', cluster_rows=F, cluster_cols=FALSE, border_color = NA)

`summarise()` has grouped output by 'room_romaji'. You can override using the `.groups` argument.

etc

filter(a, avg_yaku_han>4, yaku_romaji=='Dora')

A tibble: 2 × 16

yaku	month	year	room	mode	total	count	avg_yaku_han	avg_hand_han	date	room_romaji	yaku_romaji	han_value_closed	mode_romaji	n_players	n_rounds
<chr>	<dbl>	<dbl>	<chr>	<chr>	<dbl>	<dbl>	<dbl>	<dbl>	<date>	<chr>	<chr>	<ord>	<chr>	<dbl>	<dbl>
ドラ	1	2014	上級	東	2	1	5	8	2014-01-01	joukyuu	Dora	1 Han	tonpu	4	4
ドラ	10	2022	特上	三東喰赤	2	1	6	10	2022-10-01	tokujou	Dora	1 Han	sanma tonpu kui-aka	3	3

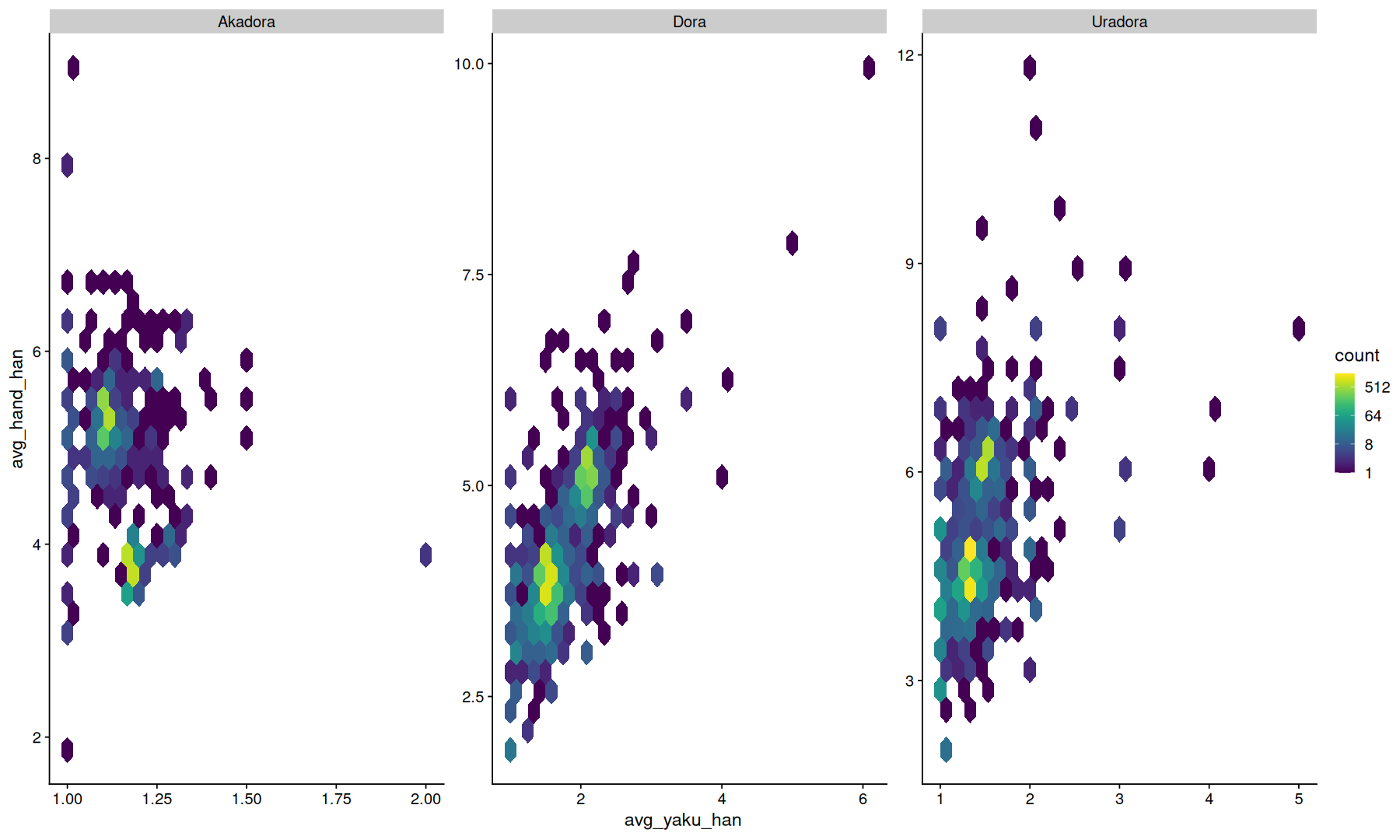

filter(a, yaku_romaji %in% c("Dora", "Akadora", "Uradora")) %>%
ggplot(aes(x=avg_yaku_han, y=avg_hand_han)) + geom_hex() +
scale_fill_viridis(trans='log2') + facet_wrap(~yaku_romaji, scales="free")

Warning message:
"Removed 2269 rows containing non-finite values (`stat_binhex()`)."

mutate(a, z=count/total * avg_yaku_han) %>% filter(total>10000) %>%
select(yaku_romaji, count, total, avg_yaku_han, avg_hand_han, date, room, mode, z) %>% unique

A tibble: 184032 × 9

yaku_romaji	count	total	avg_yaku_han	avg_hand_han	date	room	mode	z
<chr>	<dbl>	<dbl>	<dbl>	<dbl>	<date>	<chr>	<chr>	<dbl>
Dora	30121	39157	2.15	5.66	2007-01-01	一般	三南喰赤	1.653858824731210
Dora	8563	11204	2.15	5.67	2007-01-01	一般	三東喰赤	1.643203320242770
Dora	8127	21206	1.56	3.93	2007-01-01	一般	南	0.597855323964916
Dora	5760	14760	1.56	3.77	2007-01-01	一般	南喰	0.608780487804878
Dora	16592	43756	1.58	4.39	2007-01-01	一般	南喰赤	0.599126062711400
Dora	17642	46241	1.57	3.93	2007-01-01	一般	東	0.598990938777276
Dora	159783	422043	1.58	4.36	2007-01-01	一般	東喰赤	0.598178716386719
Dora	26446	68752	1.55	4.27	2007-01-01	上級	東喰赤	0.596219746334652
Dora	151123	195751	2.14	5.48	2008-01-01	一般	三南喰赤	1.652115289321638
Dora	82477	107548	2.17	5.53	2008-01-01	一般	三東喰赤	1.664141499609477
⋮	⋮	⋮	⋮	⋮	⋮	⋮	⋮	⋮
Tsumo	211101	726500	1	5.56	2022-12-01	上級	三南喰赤	0.290572608396421
Tsumo	4082	14841	1	5.60	2022-12-01	上級	三東喰赤	0.275048851155583
Tsumo	188639	889683	1	4.33	2022-12-01	上級	南喰赤	0.212029453187259
Tsumo	58246	298332	1	4.29	2022-12-01	上級	東喰赤	0.195238861402733
Tsumo	181720	572860	1	5.47	2022-12-01	特上	三南喰赤	0.317215375484412
Tsumo	148986	630563	1	4.31	2022-12-01	特上	南喰赤	0.236274567331099
Tsumo	39391	183113	1	4.26	2022-12-01	特上	東喰赤	0.215118533364644
Tsumo	19370	54694	1	5.47	2022-12-01	鳳凰	三南喰赤	0.354152192196585
Tsumo	26541	106082	1	4.30	2022-12-01	鳳凰	南喰赤	0.250193246733659
Tsumo	2509	11032	1	4.21	2022-12-01	鳳凰	東喰赤	0.227429296591733

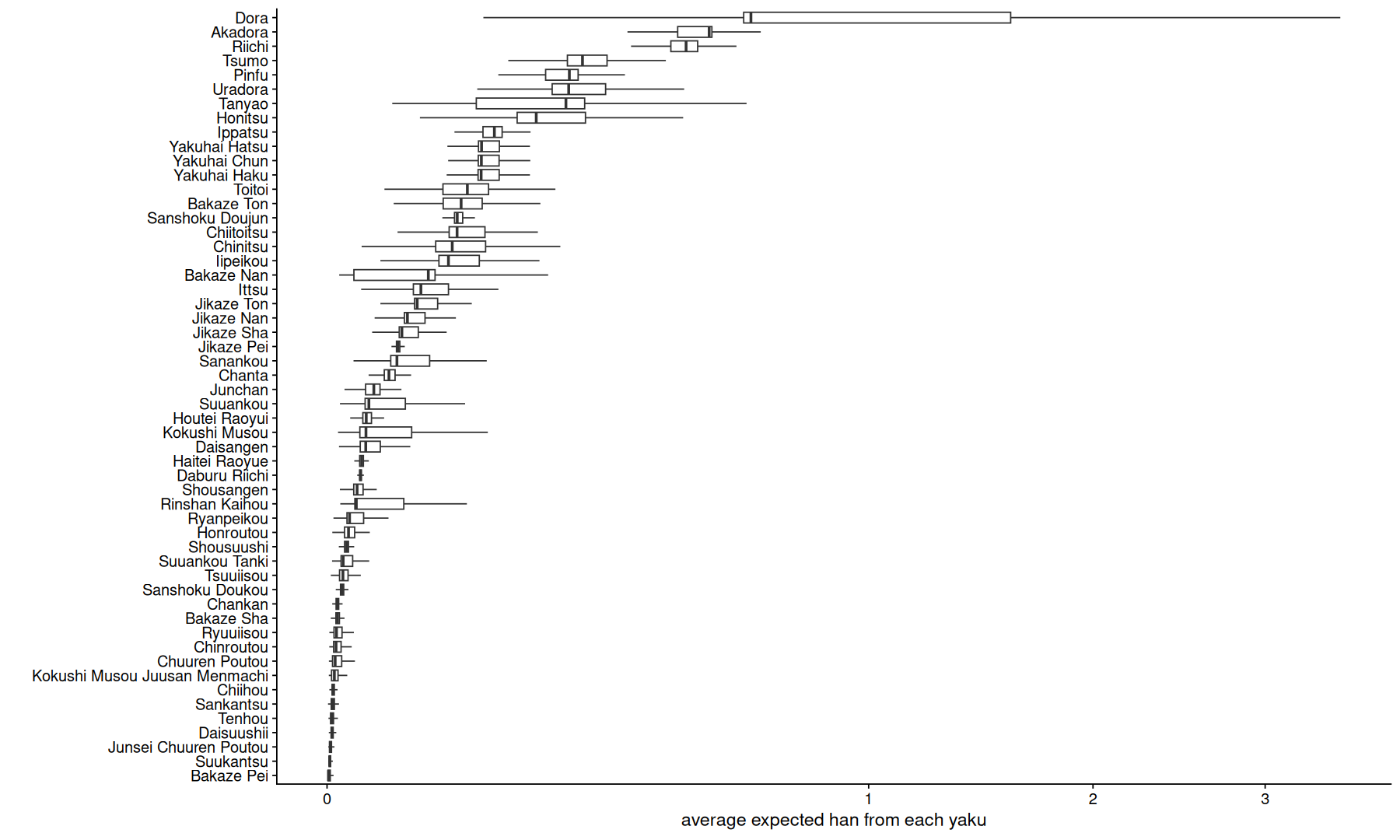

select(a, yaku_romaji, count, total, avg_yaku_han, avg_hand_han, date, room, mode) %>% unique %>%
mutate(avg_exp_han=count/total * avg_yaku_han) %>%
ggplot(aes(x=avg_exp_han, y=fct_reorder(yaku_romaji,avg_exp_han, .na_rm=TRUE))) + geom_boxplot(outlier.shape = NA) +
scale_x_sqrt() +
labs(y="", x="average expected han from each yaku")

Warning message:
"Removed 70864 rows containing non-finite values (`stat_boxplot()`)."

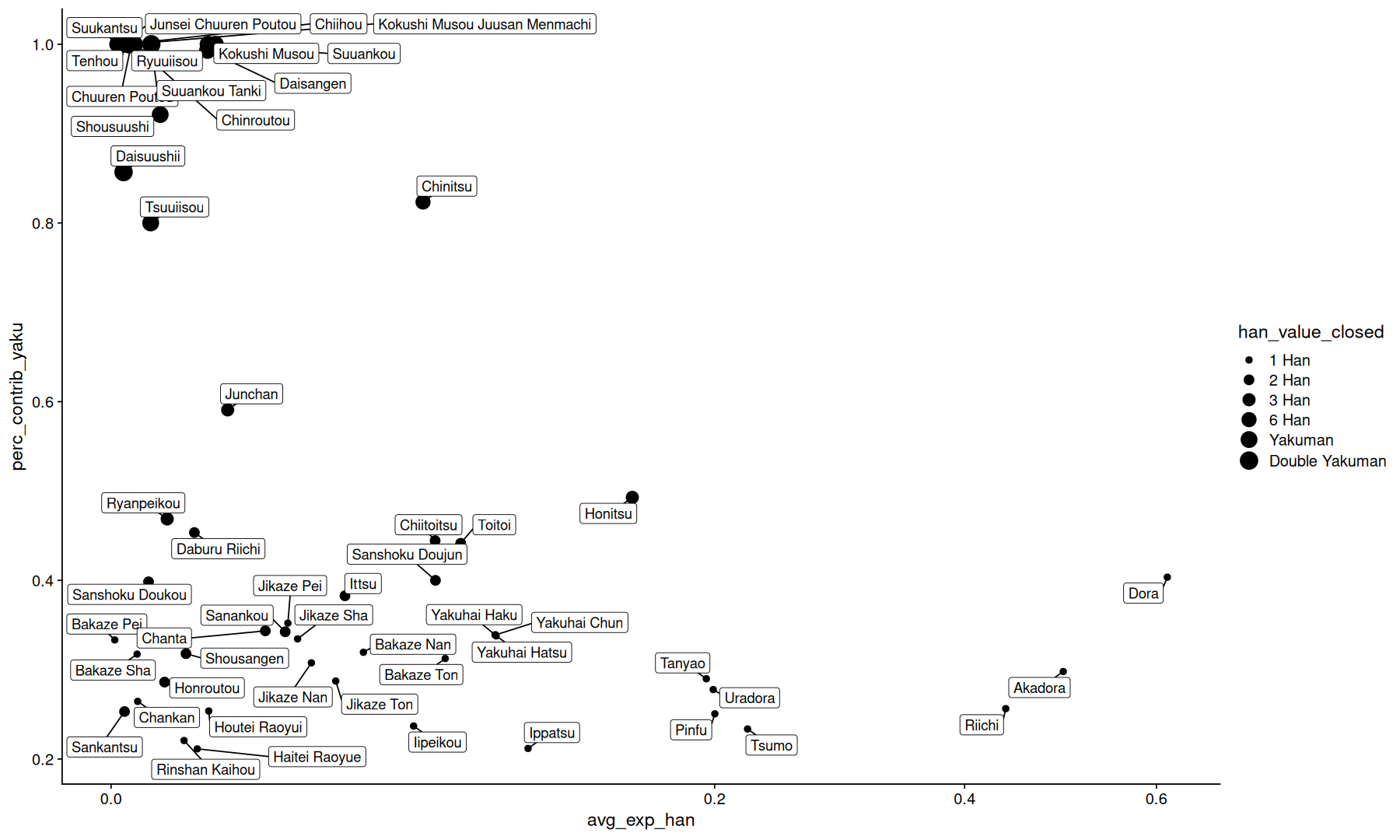

select(a, yaku_romaji, count, total, avg_yaku_han, avg_hand_han, date, room, mode, han_value_closed) %>% unique %>%
mutate(avg_exp_han=count/total * avg_yaku_han, perc_contrib_yaku=avg_yaku_han/avg_hand_han) %>%
group_by(yaku_romaji, han_value_closed) %>%
summarize(
    avg_exp_han=median(avg_exp_han, na.rm=TRUE),
    perc_contrib_yaku=median(perc_contrib_yaku, na.rm=TRUE)
) %>%
ggplot(aes(x=avg_exp_han, y=perc_contrib_yaku)) +
geom_point(aes(size=han_value_closed)) +
geom_label_repel(aes(label=yaku_romaji), max.overlaps = Inf, min.segment.length = 0) +
scale_x_sqrt()

`summarise()` has grouped output by 'yaku_romaji'. You can override using the `.groups` argument.
