suppressPackageStartupMessages({
    library(tidyverse)
    library(cowplot)
    library(broom)
    library(dbscan)
    theme_set(theme_cowplot())
})
options(repr.plot.width=15,repr.plot.height=9)

Clustering

k-means clustering

data("penguins", package = "modeldata")
head(penguins,3)

data <- na.omit(penguins)

A tibble: 3 × 7

species	island	bill_length_mm	bill_depth_mm	flipper_length_mm	body_mass_g	sex
<fct>	<fct>	<dbl>	<dbl>	<int>	<int>	<fct>
Adelie	Torgersen	39.1	18.7	181	3750	male
Adelie	Torgersen	39.5	17.4	186	3800	female
Adelie	Torgersen	40.3	18.0	195	3250	female

kmeans.obj <-
    select(data, bill_length_mm, bill_depth_mm) |>
    kmeans(centers=3)

glance(kmeans.obj)
tidy(kmeans.obj)

A tibble: 1 × 4

totss	tot.withinss	betweenss	iter
<dbl>	<dbl>	<dbl>	<int>
11216.3616216216	2265.06659663866	8951.29502498297	3

A tibble: 3 × 5

bill_length_mm	bill_depth_mm	size	withinss	cluster
<dbl>	<dbl>	<int>	<dbl>	<fct>
38.4242647058823	18.2779411764706	136	904.983750000000	1
45.5098214285714	15.6830357142857	112	742.096964285715	2
50.9035294117647	17.3364705882353	85	617.985882352941	3

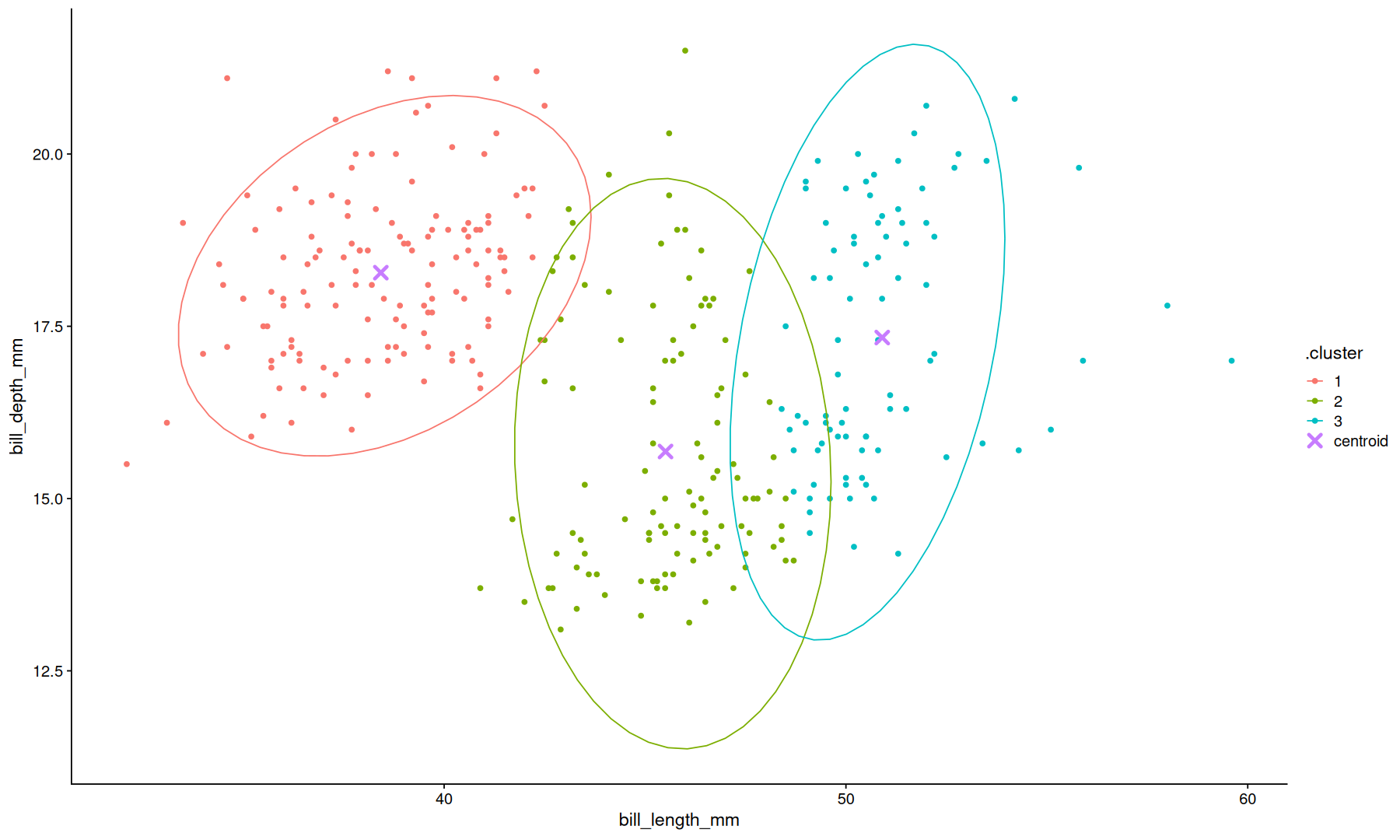

augment(kmeans.obj, data) |>
ggplot(aes(x=bill_length_mm, y=bill_depth_mm, color=.cluster)) +
geom_point() +
geom_point(data=tidy(kmeans.obj), shape=4, size=3, stroke=2, aes(color='centroid'))  +
stat_ellipse()

hierarchical clustering

select(data, bill_length_mm, bill_depth_mm) |>
as.matrix() |>
dist(method = 'canberra') |>
hclust(method='ward.D2') -> hc

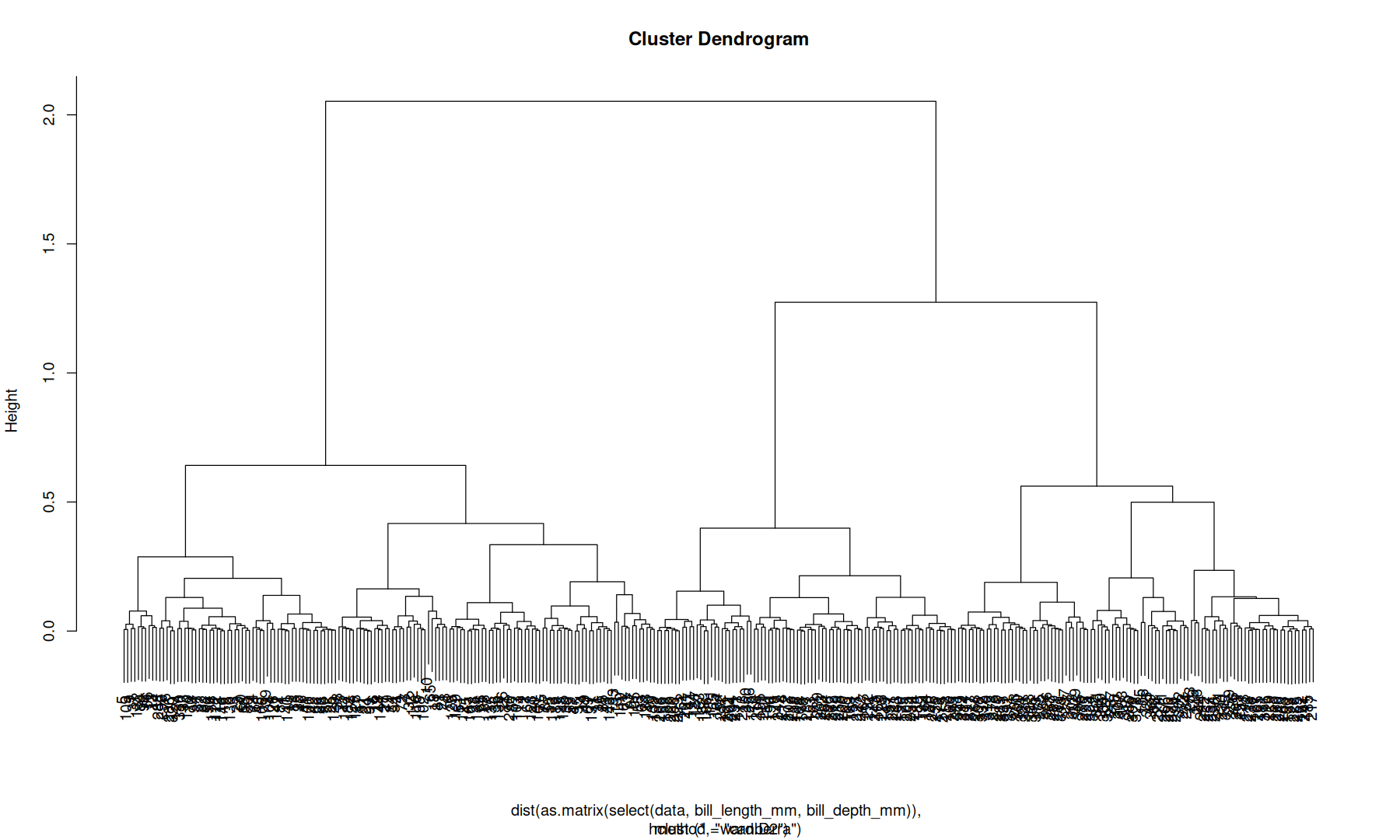

plot(hc)

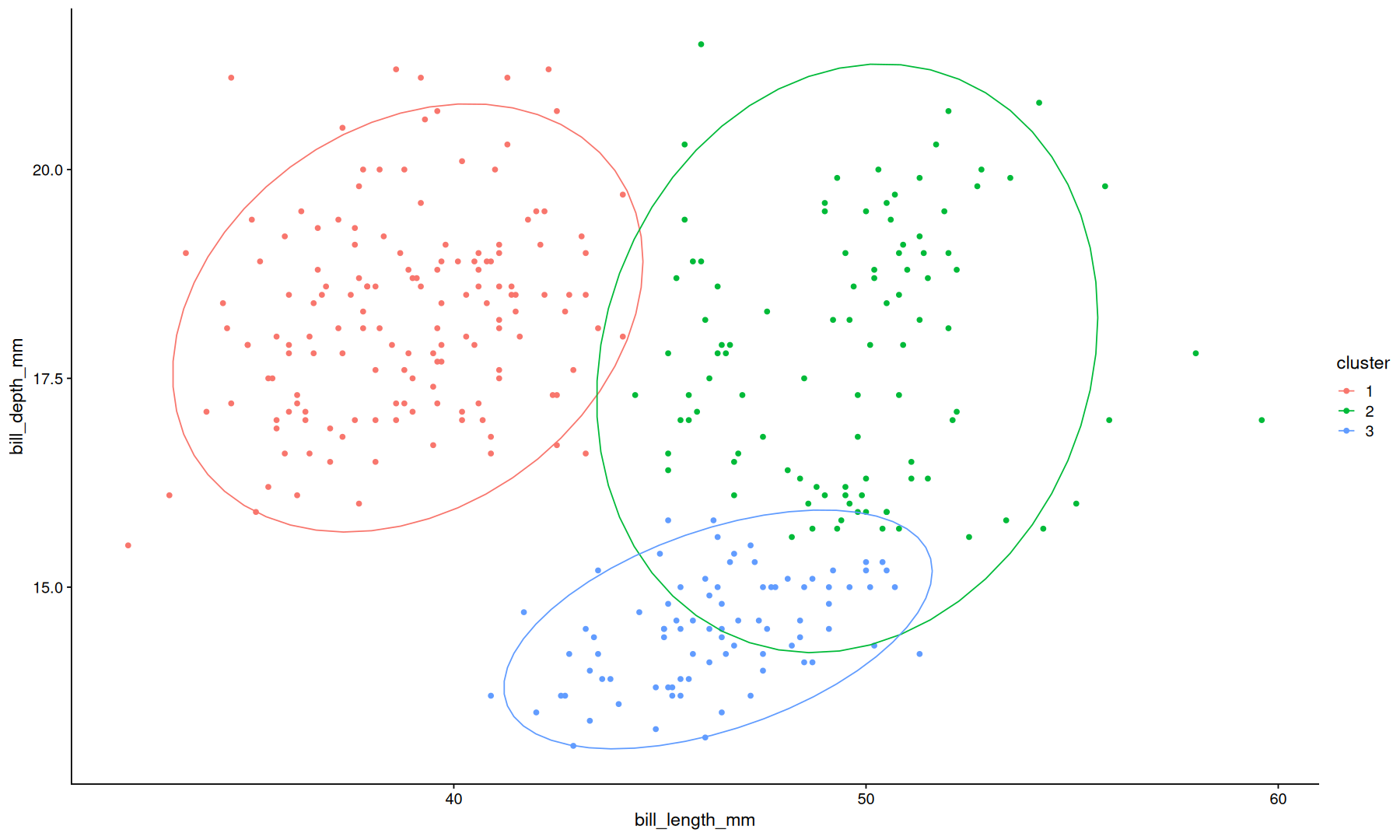

mutate(data, cluster=factor(cutree(hc, k=3))) |>
ggplot(aes(x=bill_length_mm, y=bill_depth_mm, color=cluster, group=cluster)) +
geom_point() +
stat_ellipse()

density clustering

data(DS3, package='dbscan')

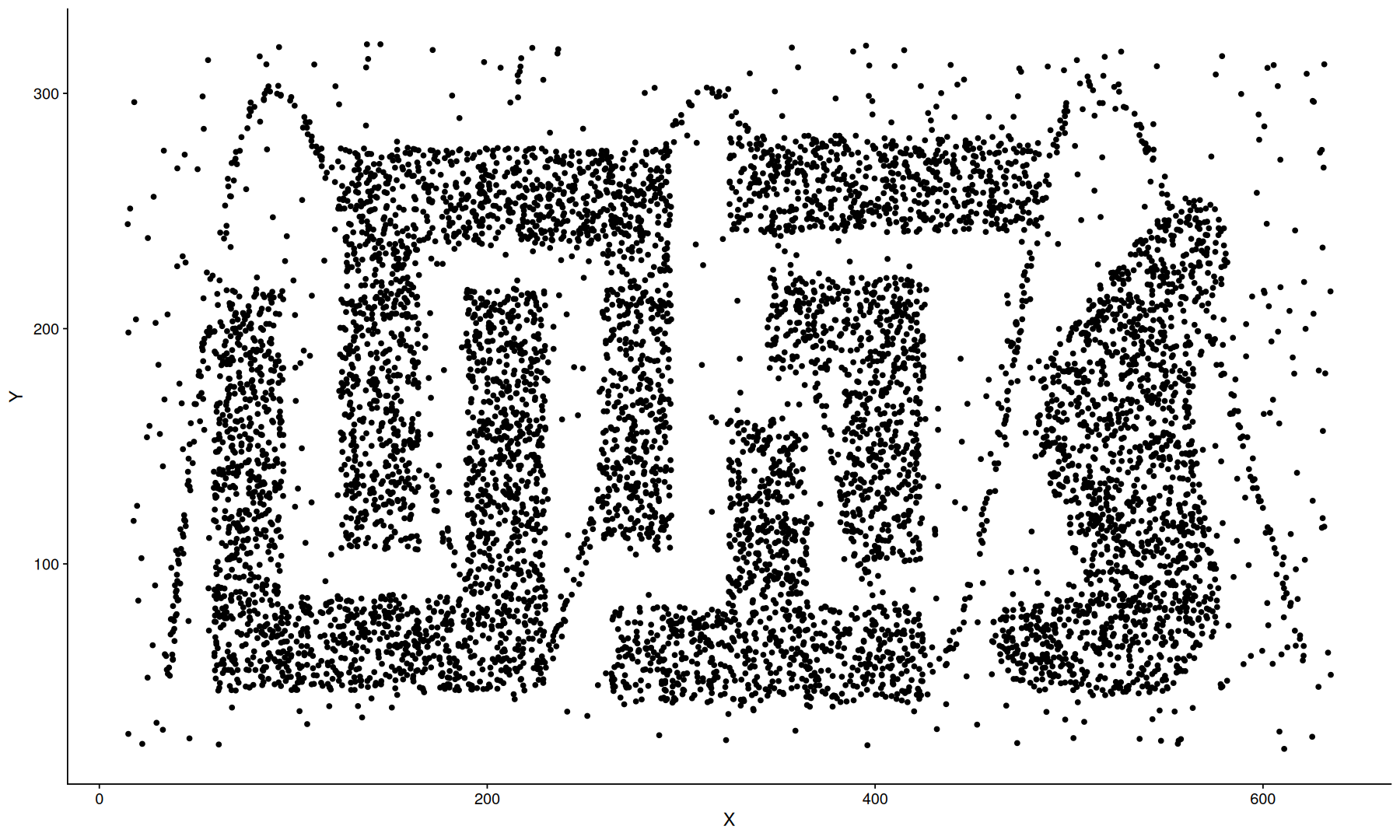

ggplot(DS3, aes(x=X, y=Y)) +
geom_point()

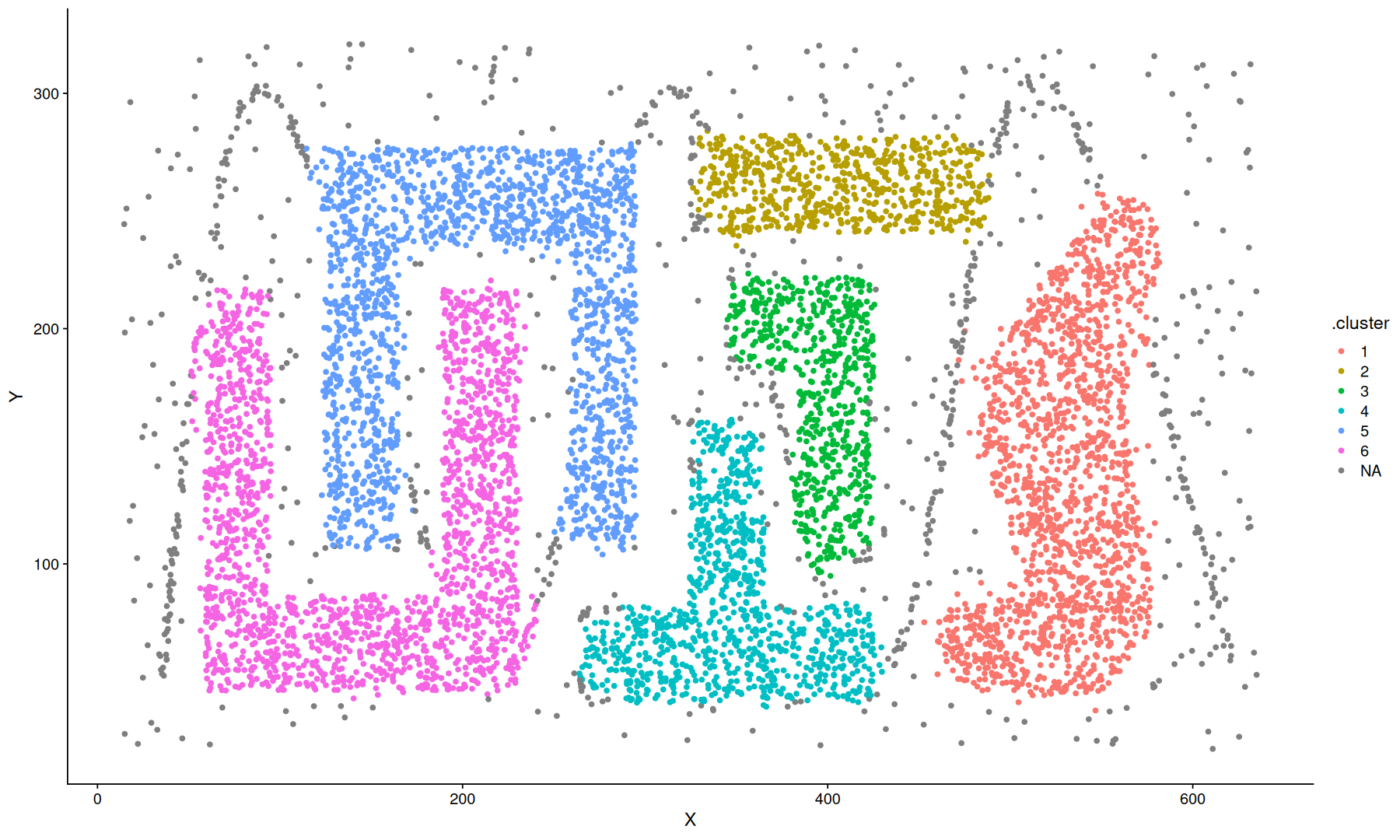

dbscan.obj <- hdbscan(DS3, minPts = 25)

augment(dbscan.obj, DS3) |>
# cluster 0 is noise
mutate(.cluster=if_else(.cluster==0, NA, .cluster)) |>
ggplot(aes(x=X, y=Y, color=.cluster)) +
geom_point()
